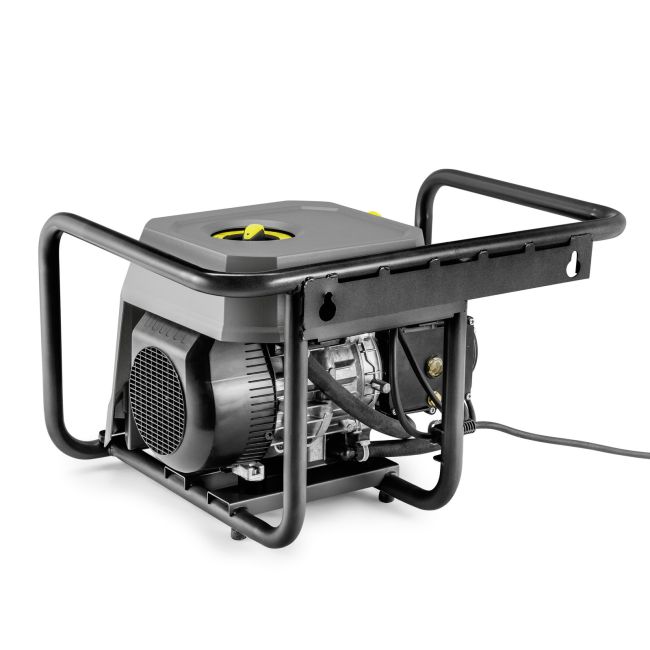

Karcher Pressure Washer, HD 17/15-4 S St Classic

The powerful HD 17/15-4 S St Classic stationary cold water high-pressure cleaner for tough continuous use and optimum cleaning results. Easy installation, operation and maintenance.

Robust, powerful, ultra-simple to operate and suitable for the toughest stationary applications: the HD 17/15-4 S St. Classic cold water high-pressure cleaner from Karcher produces up to 150 bar of working pressure from its 9 kW motor output and delivers an hourly flow rate of 1700 litres. The strong, easy-to-adjust crankshaft pump with its high-quality brass cylinder head and the low-speed 4-pole motor with automatic shutoff and air/water cooling form the beating heart of the machine, ensuring consistent and long-lasting operation. In addition to this, the pump is effectively protected from dirt by an easy-to-clean water filter. The trigger gun, lance, 10-meter high pressure hose and a power nozzle are supplied as standard – all featuring our innovative EASY!Lock quick-release coupling for speed and ease. Routine service and maintenance tasks on the HD 17/15-4 S St Classic can be completed just as quickly as installing its ultra-sturdy steel frame to the wall or floor.

Features & Benefits

• Powerful and robust crankshaft pump with brass cylinder head and pistons with ceramic sleeves - High performance and high efficiency. Long service life and low maintenance costs. With suction feature and up to 60 °C water temperature.
• Robust, stationary chassis - A robust tubular steel frame reliably protects the machine against damage. Sturdy tubular steel frame protects all components. Integrated storage space for accessories.
• Classic accessories with EASY!Lock connections - Quick set-up and pack-up plus easy accessory replacement. Easy to use.

Application Areas

• Cleaning animal stables in agriculture
• Ideal for car dealerships, car hire companies and service stations
• Vehicle and machine cleaning in the automotive, industrial and agricultural sectors
• Cleaning tractors, machines and implements in agriculture
• High-pressure cleaning of machines and equipment in the construction, agricultural and municipal sectors
• For cleaning production halls, warehouses and logistics halls, as well as loading areas
• Ideal for diverse applications in the transport and logistics sector
• Industry
• Agriculture

Equipment

• High-pressure hose length: 10 m
• High-pressure hose specification: DN 10, 250 bar
• Spray lance: 840 mm
• Power nozzle
• Crankshaft pump with ceramic pistons
• 4-pole, three-phase motor with air and water cooling
• Pressure switch-off
• Integrated water fine filter
• Oil level indicator
• Brass water inlet

Technical data

• Supply voltage (Ph/V/Hz) - 3 / 376 - 424 / 50
• Flow Rate (l/h) - 1000 - 1700
• Inlet temperature (°C) - 60
• Working pressure (bar) - 100 - 150
• Max. Pressure (bar) - 210
• Connected load (kW) - 9
• Power cable (m) - 5
• Nozzle size - 110
• Water inlet - 1"
• Colour - anthracite
• Weight (with accessories) (kg) - 61
• Weight incl. packaging (kg) - 66.7
• Dimensions (L × W × H) (mm) - 720 x 522 x 418
