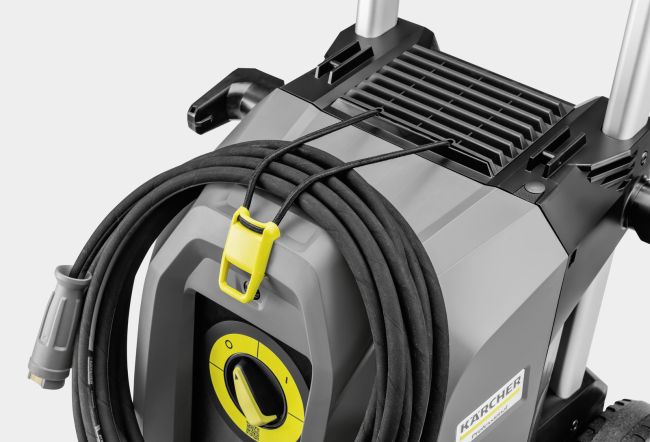

Karcher Pressure Washer, HD 10/25-4 S

The HD 10/25-4 S cold water high-pressure cleaner delivers premium quality, high performance and helpful assistance systems. Designed for ergonomic working and maximum portability.

The HD 10/25-4 S cold water high-pressure cleaner takes ergonomic working to the next level. The practically designed EASY!Force Advanced trigger gun makes it effortless to use without any holding force. A rotating 1050-millimetre stainless steel lance delivers maximum efficiency. The Servo Control enables the user to control the pressure and water volume straight from the trigger gun/lance. Assistance systems and an LED status display also enhance the user-friendly design. You can count on Kärcher to use the best materials to guarantee the highest, longest-lasting quality. Working away inside the machine is a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head. The HD 10/25-4 S is driven by a 4-pole low-speed motor with air-water cooling system. Integrated aluminium frame carriers reduce the weight and provide a lightweight yet hard-wearing chassis, making crane loading an option. The upright structure, whereby the motor and pump unit is installed in a vertical arrangement, offers maximum portability in practice. The compact design also incorporates clever accessory storage such as a stowage compartment and adjustable hooks.

Features & Benefits

• Compact upright design concept based on vertical arrangement of motor and pump unit - Small footprint and space-saving proportions. Easy to manoeuvre and transport. Maximum stability ensures a stable footing for the machine.
• 4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head - Long service life and low maintenance costs. High performance and high efficiency. With suction feature and up to 60 °C water temperature
• Intelligently designed service concept facilitates quick operations on site - Swivelling pump head. Convenient oil fill level display and oil drain hole integrated in the chassis. Modular construction, comprising pump, motor and control cabinet.

Application Areas

• Cleaning tractors, machines and implements in agriculture
• Cleaning machines and equipment on the building site, such as cement mixers, scaffolding, wheel loaders, diggers or concrete pumps
• Cleaning production machinery in industry, such as in paint shops, in food production or in the manufacturing sector
• Cleaning vehicles in transport sector, such as trucks, ships, aeroplanes or buses
• Cleaning communal spaces such as public squares, driveways, fountains or car parks

Equipment

• Trigger gun: EASY!Force Advanced
• High-pressure hose length: 10 m
• High-pressure hose type: Premium quality
• High-pressure hose specification: ID 8, 315 bar
• Spray lance: 1050 mm
• Power nozzle
• Servo Control
• 4-pole three-phase motor with air and water cooling
• Three piston axial pump: with stainless steel pistons
• Pressure switch control
• Integrated fine mesh water filter
• Electronic motor protection system with LED display
• Oil sight glass
• Brass water inlet fitting

Technical data

• Current type (Ph/V/Hz) - 3 / 376 - 424 / 50
• Flow Rate (l/h) - 500 - 1000
• Water feed temperature (°C) - 60
• Operating pressure (bar) - 80 - 250
• Max. Pressure (bar) - 280
• Power rating (kW) - 8.8
• Power cable (m) - 5
• Nozzle size - 047
• Water inlet - 1"
• Colour - anthracite
• Weight (with accessories) (kg) - 69.8
• Weight incl. packaging (kg) - 78.1
• Dimensions (L × W × H) (mm) - 607 x 518 x 1063
